OpenVSP-Connect

OpenVSP-Connect Hangar

ATR 72

Back to Hangar

     left-click = rotate, ALT-left-click = zoom, CTLR-left-click = pan

The Airbus ATR 72 has been modeled merely from a few parameters found at Wikipedia and in a Company Leaflet (PDF, 2.9 MB). For data unavailable, default expert data was used. Default data for the landing gear was manually fitted to indicate a fuselage mounted landing gear.



Available Files

*.xlsm OpenVSP-Connect_ATR72.xlsm     Size:  1.3M

*.vsp ATR72.vsp     Size:  109K

*.x3d ATR72.x3d     Size:  469K

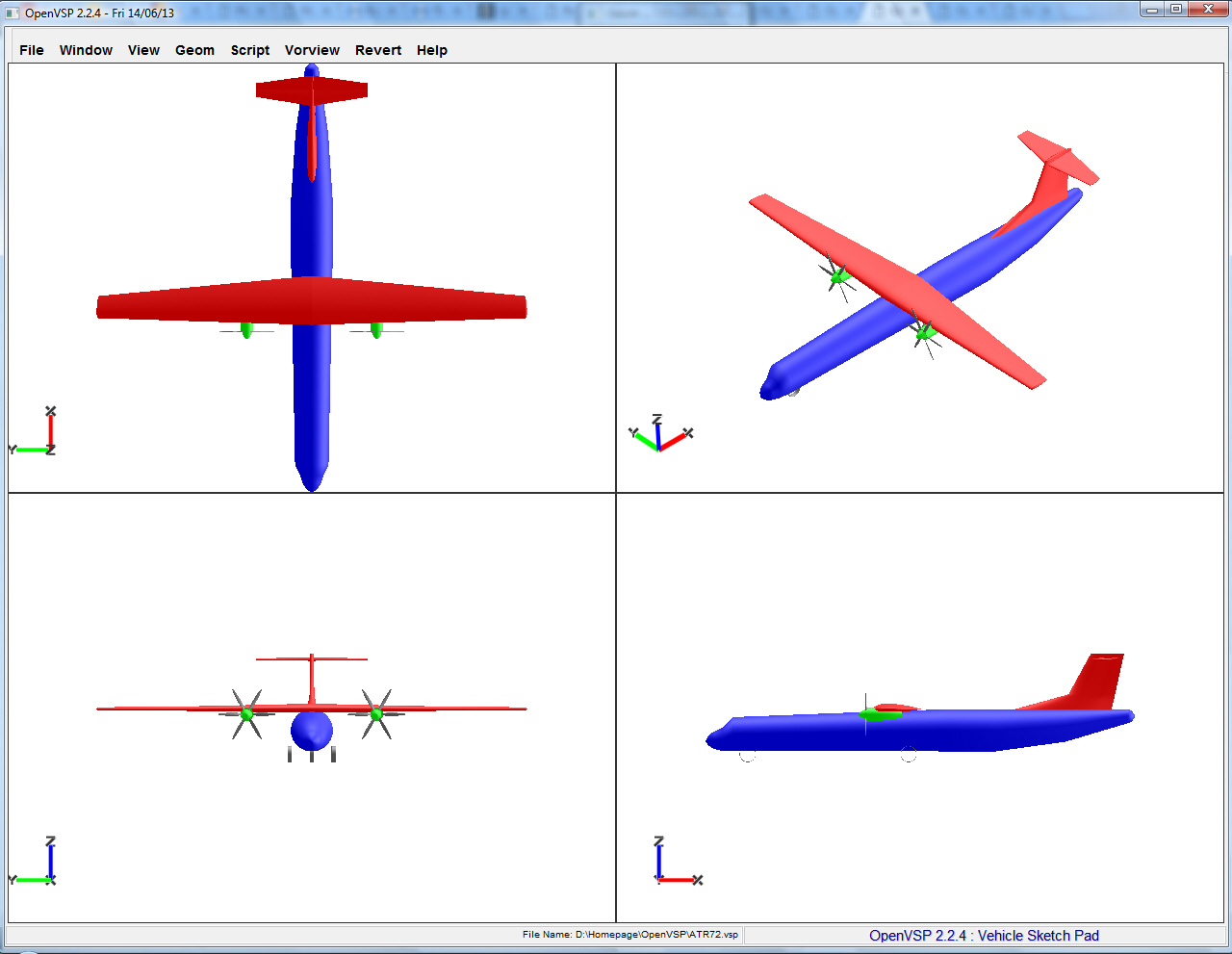

*.jpg ATR72-4view.jpg     Size:  232K

*.jpg ATR72.jpg     Size:   32K

STAND:  15 May 2020
AUTHOR:  Prof. Dr. Scholz
