The Mass Growth Factor Snowball Effects in Aircraft Design

John Singh Cheema

Abstract
Purpose This project work shows a literature survey, clearly defines the mass growth factor, shows a mass growth iteration, and derives an equation for a direct calculation of the factor (without iteration). Definite values of the factor seem to be missing in literature. To change this, mass growth factors are being calculated for as many of the prominent passenger aircraft as to cover 90% of the passenger aircraft flying today. The dependence of the mass gain factor on requirements and technology is examined and the relation to Direct Operating Costs (DOC) is pointed out. --- Methodology Calculations start from first principles. Publically available data is used to calculate a list of mass growth factors for many passenger aircraft. Using equations and the resulting relationships, new knowledge and dependencies are gained. --- Findings The mass growth factor is larger for aircraft with larger operating empty mass ratio, smaller payload ratio, larger specific fuel consumption (SFC), and smaller glide ratio. The mass growth factor increases much with increasing range. The factor depends on an increase in the fixed mass, so this is the same for the payload and empty mass. The mass growth factor for subsonic passenger aircraft is on average 4.2, for narrow body aircraft 3.9 and for wide body aircraft (that tend to fly longer distance) 4.9. In contrast supersonic passenger aircraft show a factor of about 14. --- Practical implications The mass growth factor has been revisited in order to fully embrace the concept of mass growth and may lead to a better general understanding of aircraft design. --- Social implications A detailed discussion of flight and aircraft costs as well as aircraft development requires detailed knowledge of the aircraft. By understanding the mass growth factor, consumers can have this discussion with industry at eye level. --- Originality/value The derivation of the equation for the direct calculation of the mass growth factor and the determination of the factor using the iteration method for current aircraft was not shown in the examined literature.

Download full text: PDF/A TextCheemaProject.pdf    Size:  1.5M
Date:2020-03-31
Type of work: Project
Advisor / Examiner:Dieter Scholz
Published by:Aircraft Design and Systems Group (AERO), Department of Automotive and Aeronautical Engineering, Hamburg University of Applied Sciences
This work is part of:transparent pin for text alignment Digital Library - Projects & Theses - Prof. Dr. Scholz --- http://library.ProfScholz.de pin

PERSISTENT IDENTIFIER:
URN: https://nbn-resolving.org/urn:nbn:de:gbv:18302-aero2020-03-31.011 (to reach this page)
DOI:https://doi.org/10.15488/11530
ARK:https://n2t.net/ark:/13960/s2pnnskbzg7
Associated research data:https://doi.org/10.7910/DVN/6NHDDP    (Program and Data)
URLs registered with URN: Show all links associated with this text!

CATALOG ENTRY:
DNB: Check inclusion of this title in German National Library!
WorldCat: Check inclusion of this title in WorldCat!
DataCite: Check inclusion of this title in DataCite!
Google Scholar: Check inclusion of this title in Google Scholar!
Semantic Scholar: Check inclusion of this title in Semantic Scholar!
OpenAIRE: Check inclusion of this title in OpenAIRE!
BASE: Check inclusion of this title in BASE!
CORE: Check inclusion of this title in CORE!
Google: Check inclusion of this title in Google!

Keywords, German (GND): Luftfahrt,   Luftfahrzeug,   Flugmechanik,   Passagierflugzeug
Keywords, English (LCSH): Aeronautics,   Airplanes,   Design,   Airplanes--Performance
Keywords, free: Flugzeug, Masse, Nutzlast, Reichweite, Betriebskosten, Betriebsleermasse, Flugzeugentwurf, Massenzunahme, payloads, airplanes--fuel consumption, aerodynamics, aircraft, mass, operating empty mass, aircraft design, mass growth, range, SFC, DOC
DDC: 629.13,    629.1341,    629.1333,    629.132
RVK: ZO 7200

© This work is protected by copyright

The work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License
CC BY-NC-SA
https://creativecommons.org/licenses/by-nc-sa/4.0

CC-BY-NC-SA

Any further request may be directed to:
Prof. Dr.-Ing. Dieter Scholz, MSME
E-Mail see: http://www.ProfScholz.de

VISIBILITY:  (more)

Share this text:
Twitter LinkedIn Facebook XING Mendeley InternetArchive E-Mail

Print Friendly and PDF

Quote this text:
ISO 690:
CHEEMA, John Singh, 2020. The Mass Growth Factor Snowball Effects in Aircraft Design. Project. Hamburg University of Applied Sciences, Aircraft Design and Systems Group (AERO). Available from: https://nbn-resolving.org/urn:nbn:de:gbv:18302-aero2020-03-31.011 [viewed YYYY-MM-DD].

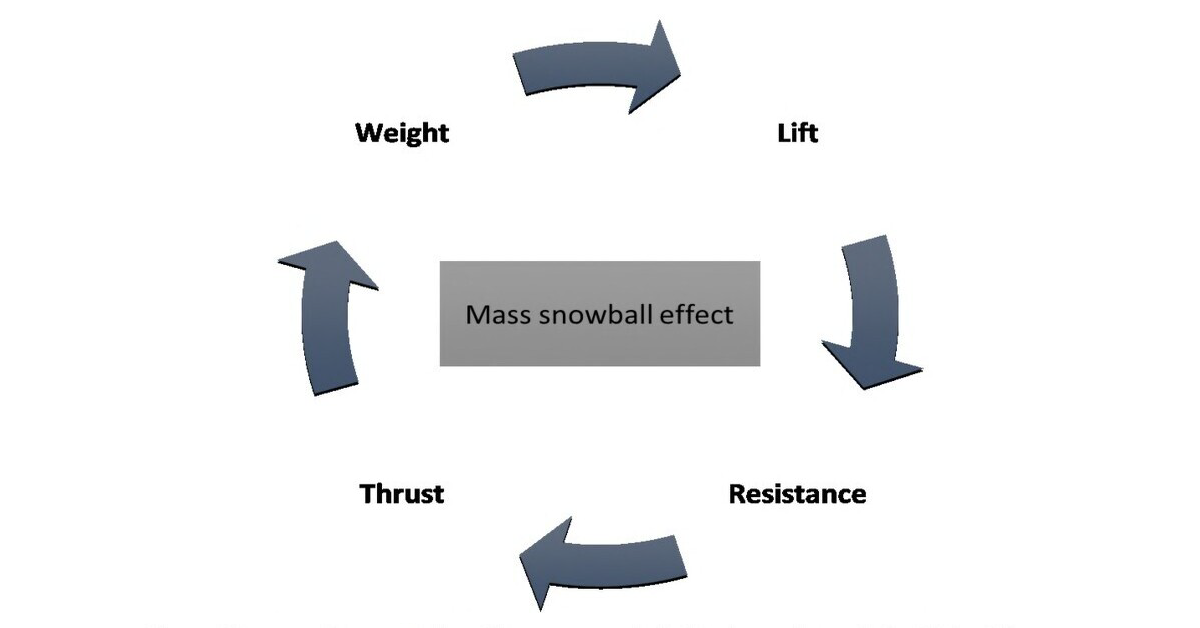

Major results / graphical abstract:
Major results / graphical abstract

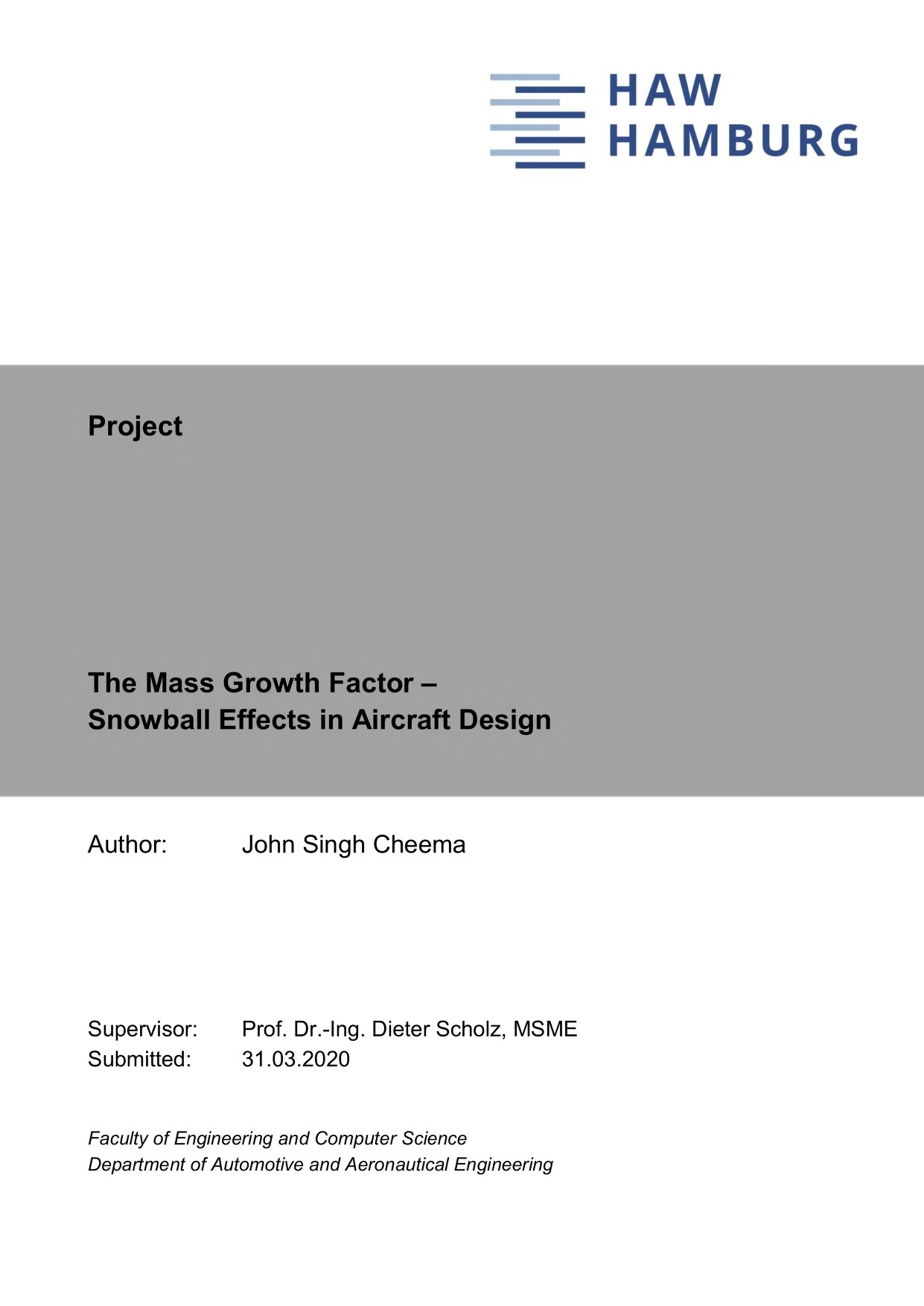

Front page:
Cover Page
