HAW Hamburg --- Lecture: Aircraft Design

OpenVSP-Connect in Week 5 and 6 of Distance Education

Topic: OpenVSP-Connect Compulsory for Every Student

Please work in "Automatic Mode" pure or use "Automatic Mode" adapted such that you redesign an existing aircraft.

Please right-click in the picture and open in another tab to see the (larger) original picture!

In oder to show something here, I have included an aircraft that would qualify for this homework.

Family Name = Scholz
Given Name = Dieter
My Aircraft =

Fast Commuter

Fast commuter for 90 passengers, cruise Mach number 0.9, high wing (95%), trapezoidal wing, T-tail, 3 engines, fuselage mounted landing gear indicated (position manually adapted). 3D visualization in OpenVSP: Windows: Four; View: Top, Left Iso, Left Side, Front; Alt PrintScreen; Paint (or similar): Ctrl V, Ctrl S; upload (e.g. postimages.org), image in HTML-Editor: Dimensions, max: 500 x 500 pixel.

Thu Apr 2 06:05:35 2020
-------------------------------------------------
And now the new uploads:
-------------------------------------------------

Family Name = Li
Given Name = Derek (Jianghang)
My Aircraft =

A single aisle aircraft, conventional configuration based on the Bombardier Q400.

Designed in OpenVSP Connect.

Wingspan 28.4 m, range 2040 km, cruise Mach number 0.54, T-Tail, landing gear shown, no winglets.

2 Turboprop engines (PW150 with 6 blades of each, thrust 3781 kW, diameter 635 mm)

Capacity of 76 passenger.

Sat Apr 18 21:57:58 2020
-------------------------------------------------

Family Name = Lucht
Given Name = Dennis
My Aircraft =

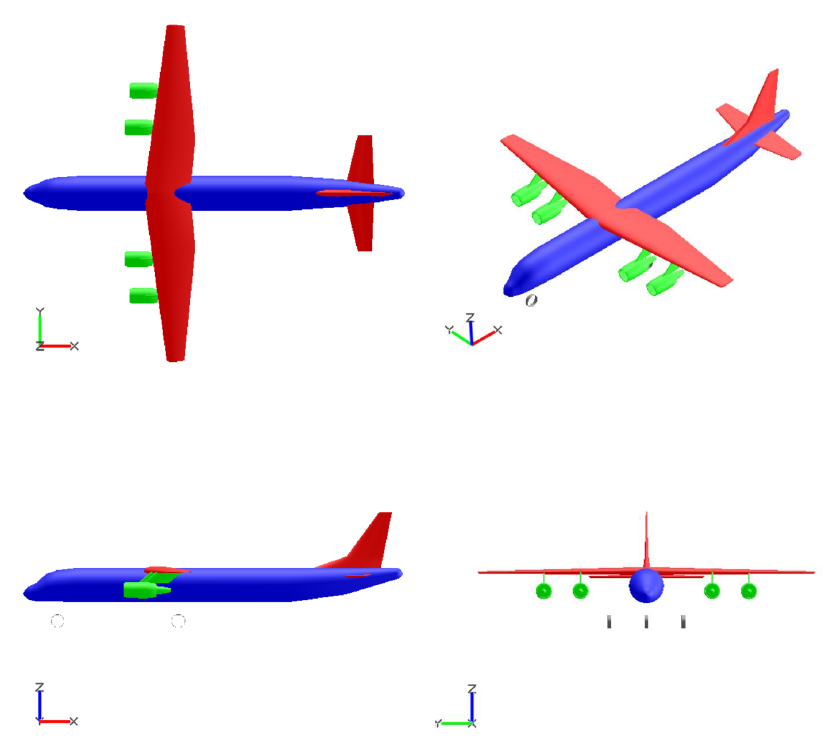

A piston-powered aircraft based on "Douglas DC-6B." Passengers 90, cruise Mach number 0.41, low trapezoidal wing, conventional tail (vertical stabilizer with dorsal fin), landing gear retracted. 4 propeller engines (3 blades, propeller diameter 4.11 m, 2400 PS 1765 kW).

Note: Cruise speed for "Douglas DC-6B" was given with 475 km/h 131.94 m/s, cruising altitude with 4,400 m. Therefore the cruise Mach number was calculated as shown below:

Temperature: T(H) = T(4,400 m) = 288.15 K – 4,400 m · 0.0065 K/m = 259.55 K

Speed of sound: a(T) = (T · R ·  κ)½ = a(259.55 K) = (259.55 K · 287.058 J (kg K)-1 · 1.4)½ = 322.97 m/s

→  Ma = v / a = 131.94 / 322.97 = 0.4085 ≈ 0.41

Sun Apr 19 00:36:26 2020
-------------------------------------------------

Family Name = Dettmer
Given Name = Marcel
My Aircraft =

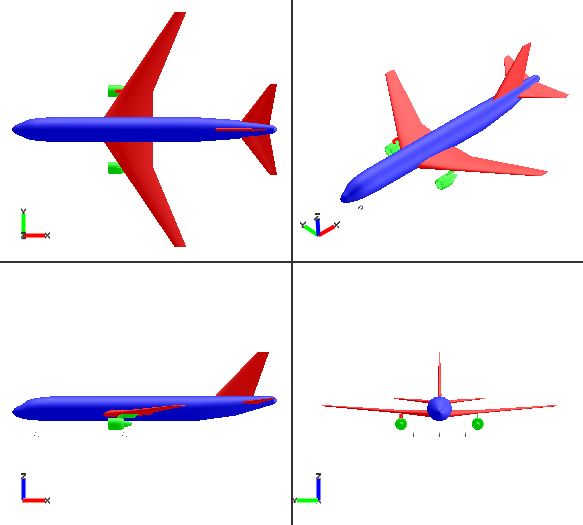

This is a replication of a Boeing 757-300. Data was taken from https://booksite.elsevier.com/9780340741528/appendices/data-a/table-3/table.htm. Position of wings, vertical/horizontal tailplane and engine cowling cover had to be set manually.

Tue Apr 21 09:38:38 2020
-------------------------------------------------

Family Name = Varol
Given Name = Can Philipp
My Aircraft =

An Aircraft for 500 People or Cargo. Landing gear retracted, 4 jet engines (total thrust 1272320 kN, diameter 2,84 m), 710m^2 Wingarea and 81m Wingspan, designed for Mach 0,9.

Tue Apr 21 18:20:02 2020
-------------------------------------------------

Family Name = Puodziunas
Given Name = Jessica
My Aircraft =

A Single aisle aircraft, conventional configuration based on the Boeing 737-100. Designed in OpenVSP Connect. Wingspan 28.35 m, range 3.185 km, passengers 124, cruise Mach number 0.82, conventional tail, landing gear extended. 2 turbofan engines (CFM International LEAP-1B , thrust 127.62-130.41 kN, diameter 1.76 m, length 3.147 m).

Tue Apr 21 20:12:15 2020
-------------------------------------------------

Family Name = Smaleit
Given Name = Helen
My Aircraft =

An aircraft inspired by the An-124 that can hold a total of 430 passengers, 80 in an upper aft fuselage and 350 in a palletised seating system . It has a wingspan of 72 meters and a fuselage length of 69 meters. It has four Progress D-18T high-bypass turbofan engines with 229 kN (51,000 lbf) of thrust each and can fly up to Mach 0,77.

Tue Apr 21 20:34:41 2020
-------------------------------------------------

Family Name = Steck
Given Name = Max-Vincent
My Aircraft =

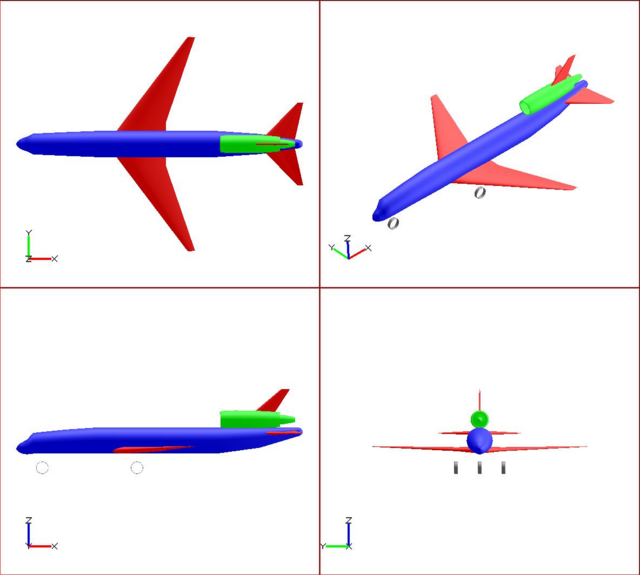

This is the Tupolew Tu-154. It can carry 160 to 180 passengers and a key characteristic are the three engines located all near the back of the aircraft.

Wed Apr 22 15:13:29 2020
-------------------------------------------------

Family Name = Ho
Given Name = Tsun Yuen
My Aircraft =

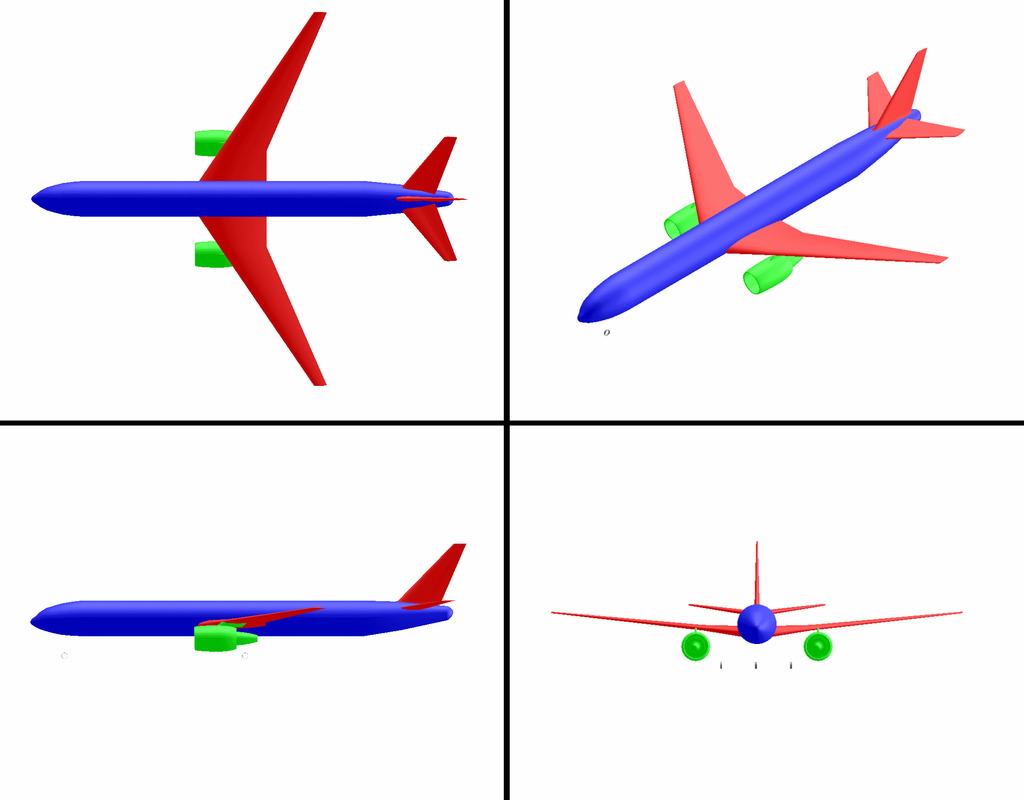

A conventional aircraft based on Boeing 777-300, 550 passengers with one class configuration, cruise Mach number 0.84, wingspan 60.9m and wing area of 427.08m^2. Two GE90-94E turbo fan engines which produce 514kN thrust (diameter 3.1m, length 7.29m).

Wed Apr 22 18:14:39 2020
-------------------------------------------------

Family Name = Jie
Given Name = Alfred
My Aircraft =

Long range 415-passanger-aircraft from Boeing, B747. Number of engines is 4 (diameter = 2.6 m, length = 4.8 m) with a total thrust of 1128 kN, mach number 0.85. Wing span = 64.4 m. Fuselage is manually edited using OpenVSP, the wings and engines are adjusted manually.

Wed Apr 22 18:34:10 2020
-------------------------------------------------

Family Name = Sharma
Given Name = Pratik
My Aircraft =

This is an aircraft based on DC-7. It can hold up to 105 passengers, has a cruise Mach number of 0.49, a conventional tail and a dorsal fin. It is powered by 4 piston engines(Wright R-3350 Duplex-Cyclone) with 4 propellor blades each with a blade diameter of 4.115m . Each engine can produce upto 2535 kW of power. The range of this aircraft is 5180 km. The landing gear is retracted.

Wed Apr 22 20:51:16 2020
-------------------------------------------------

Family Name = Vasilieva
Given Name = Inna
My Aircraft =

The airplane is a simplified version of a famous Ukrainian An-124 “Ruslan” build on the basis of A380 in OpenVSP-Connect. It is a cargo airplane with 4 x Progress D-18T high-bypass turbofan engines, 229 kN (51,000 lbf) thrust each. Max takeoff weight: 402,000 kg (886,258 lb) Maximum landing weight: 330,000 kg (727,525 lb). Wing loading: 640.1 kg/m2 (131.1 lb/sq ft). Thrust/weight: 0.23.

Wed Apr 22 21:28:19 2020
-------------------------------------------------

Family Name = Schoof
Given Name = Hendrik
My Aircraft =



A rematch of the Canadair CL-44, a turborprop aircraft built in the 1960s. It is able to transport 160 passengers, has a cruise speed of 646km/h and a MTOM of 95000kg. Range is nearly 9000km, the wing span is 43m. the length 41,7m. Only 39 aircraft were built.


Thu Apr 23 15:12:31 2020
-------------------------------------------------

Family Name = Krabes
Given Name = Vera
My Aircraft =

This is an extended Airbus 320 with a length of 43.87m to carry 170 passengers with a Cruise Mach Number of 0.82.


Thu Apr 23 17:47:37 2020
-------------------------------------------------

Family Name = Rösing
Given Name = Christian
My Aircraft =

An long range aircraft based on data of the Boeing 777-300 with two engines. Max. Pax: 550, Mach_Cruise: 0.85


Thu Apr 23 18:06:51 2020
-------------------------------------------------

Family Name = Kuehner
Given Name = Benjamin
My Aircraft =

Single aisle jet based on the McDonnell Douglas MD83 using OpenVSP-Connect. T-Tail, range 4635 km, cruise mach number 0.76, maximum of 172 passengers, total thrust 193.0 kN, wing span 32.87 m.


Fri Apr 24 12:49:15 2020
-------------------------------------------------

Family Name = López
Given Name = Ainhoa
My Aircraft =

A conventional aircraft configuration based on the CRJ-200. Designed in OpenVSP-Connect. Wingspan 21.21 m, range 1700 NM, passengers 50, cruise Mach number 0.74, T-tail, winglets. 2 jet engines (GE CF34-3B1, diameter 2.69 m, length 2.6 m, 41 kN).

Fri Apr 24 14:58:16 2020
-------------------------------------------------

Family Name = Caslin
Given Name = Abigail
My Aircraft =

A single aisle aircraft based on the A320, designed in OpenVSP Connect. Capacity of 50 passengers, 0.9 Mach number, with 3 jet engines of 80 kN thrust.

Fri Apr 24 16:07:59 2020
-------------------------------------------------

Family Name = Winkelmann
Given Name = Sandro
My Aircraft =

Large range business jet for 8 passangers based on the Gulfstream G650.

Single aisle, Range of 13000km, two turbofan Rolls-Royce BR725 engies, Crusing Mach number of 0.85, Wing area of 119.2 m², Landing gear lowered as shown.

Fri Apr 24 18:36:03 2020
-------------------------------------------------

Family Name = Otero
Given Name = Ivan
My Aircraft =

An aircraft based on the Airbus A400M. 3 passangers (2 pilots, 1 loadmaster), Mach number 0.68, Wingspan 42,36 m, Range 3300 km - 8700 km, T-Tail, 4 Turboprop engines (TP 400-D6, each 8 Blades, adjustable, Thrust 8250 kW).

Fri Apr 24 20:38:26 2020
-------------------------------------------------

Family Name = Candra
Given Name = Valeri
My Aircraft =

A conventional aircraft for 80 passengers basen on the ATR72, designed in OpenVSP Connect, range 400-800 nm, cruise mach number 0.5, Wingspan 28.8 m, length 32.4 m, T-tail, single aisle, 2 turboprop, perfect for short field length.

Fri Apr 24 21:29:44 2020
-------------------------------------------------

Family Name = Scherer
Given Name = Max
My Aircraft =

This is 98 passenger aircraft designed in VSPConnect with Ma = 0.85, a 90% double-trapeziodal high wing and T-Tail. The 2 engines generate 150 kN of thrust. It has an aspect ratio of 9,396.

Fri Apr 24 22:38:20 2020
-------------------------------------------------

Family Name = Delgado Del Río
Given Name = David
My Aircraft =

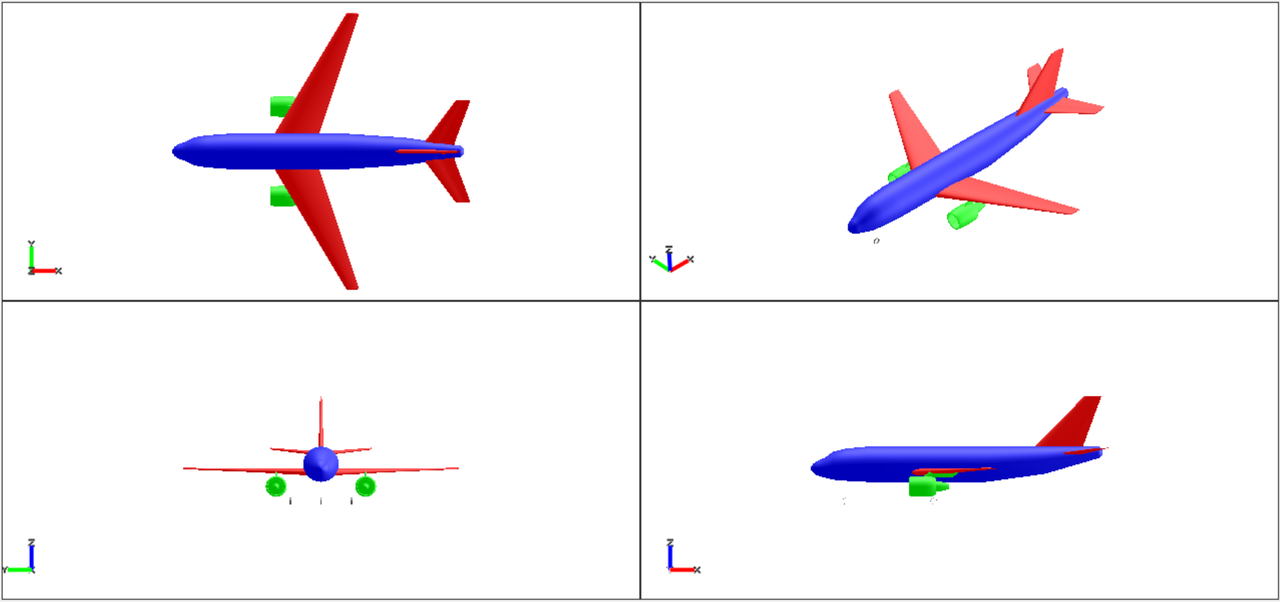

A conventional airplane from the A320 family, being this one the biggest of it. It allows 300 PAX and reaches a cruise Mach number of 0,82. With two jet engines of 595 kN of total thrust. The double-trapezoidal wing has a total area of 337 square meters and an aspect ratio of 9,4. The upper horizontal tail allows a higher efficientcy related to the main wing flow.

Fri Apr 24 22:57:24 2020
-------------------------------------------------

Family Name = Lui
Given Name = Hiu Lam Victoria
My Aircraft =

An aircraft based on Boeing 777-9 with twin jet engines from GE. The MACH number used is 0.78 as the data was not provided, and total thrust is 940kN, range is 7525 NM. It has a vertical tail and a dihedral horizontal stabilizer.

Fri Apr 24 23:13:39 2020
-------------------------------------------------

Family Name = Öcalan
Given Name = Mehmet
My Aircraft =

A conventional aircraft from Boeing, 787-800. It is 56.7 m long, wing span: 60,1m  and can carry 240 passengers.


Fri Apr 24 23:34:01 2020
-------------------------------------------------

Family Name = Marx
Given Name = Marie
My Aircraft =

Conventional Passenger Aircraft

This is a Commercial Passenger Aircraft for 95 passengers. It has a Cruise Mach Number of 0,67 and four jet engines with a diameter of 1m each. It has trapezoidal and low wings (10%) with an aspect ratio of 12. The vertical tail includes a dorsal fin and 25% sweep.

Sat Apr 25 12:24:22 2020
-------------------------------------------------

Family Name = Nabiqha
Given Name = Rizna Alfi Luaily
My Aircraft =

Three propeller engine aircraft for 42 passenger , with Mach cruise number of 0,88. With their five blades propeller, can produce total engine power 2680 kW. It has double-trapezoidal wings with total area of 70m²

Sat Apr 25 16:23:45 2020
-------------------------------------------------

Family Name = Gmelin
Given Name = Philipp
My Aircraft =

The Bombardier CRJ200 was designed to provide superior performance and operating efficiencies. Ma=0,81 - S=48.35m˛ - mTOW=24.100kg - 50 Passangers.


Mon Apr 27 18:08:13 2020
-------------------------------------------------
Sun May 24 18:12:53 2020
-------------------------------------------------
Sun May 31 05:41:35 2020
-------------------------------------------------
Sat Jun 6 13:50:16 2020
-------------------------------------------------
Sat Jun 13 05:17:54 2020
-------------------------------------------------

Family Name = Voges
Given Name = Julia
My Aircraft =

https://i.postimg.cc/2ygx0Rtn/Bildschirmfoto-2020-07-20-um-23-12-45.png

An aircraft based on the Bombardier DHC-8-400. 78 passangers, Mach number 0.62, Wingspan 28,4 m, Lenght 32,81m, Height, 8,3m. The DASH-8-Q400 range is 2.040 km, max cruising speed is 667km/h. The max operating altitude is 8.230m above mean sea level. 2 Turboprop engines (Thrust 3781 kW)


Mon Jul 20 23:15:34 2020
-------------------------------------------------

Family Name = Karim-Elalaoui
Given Name = Ismail
My Aircraft =

Family Name: Karim-Elalaoui

Given Name: Ismail

Aircraft: Gulfstream G600

Bild-HW2

Gulfstream G600 for 19 passengers with a maximum Range of 12038 km and a Mach Number of 0,925


Tue Jul 21 14:17:28 2020
-------------------------------------------------

Family Name = Voges
Given Name = Julia
My Aircraft =

Homework 2/ Week 3 and 4



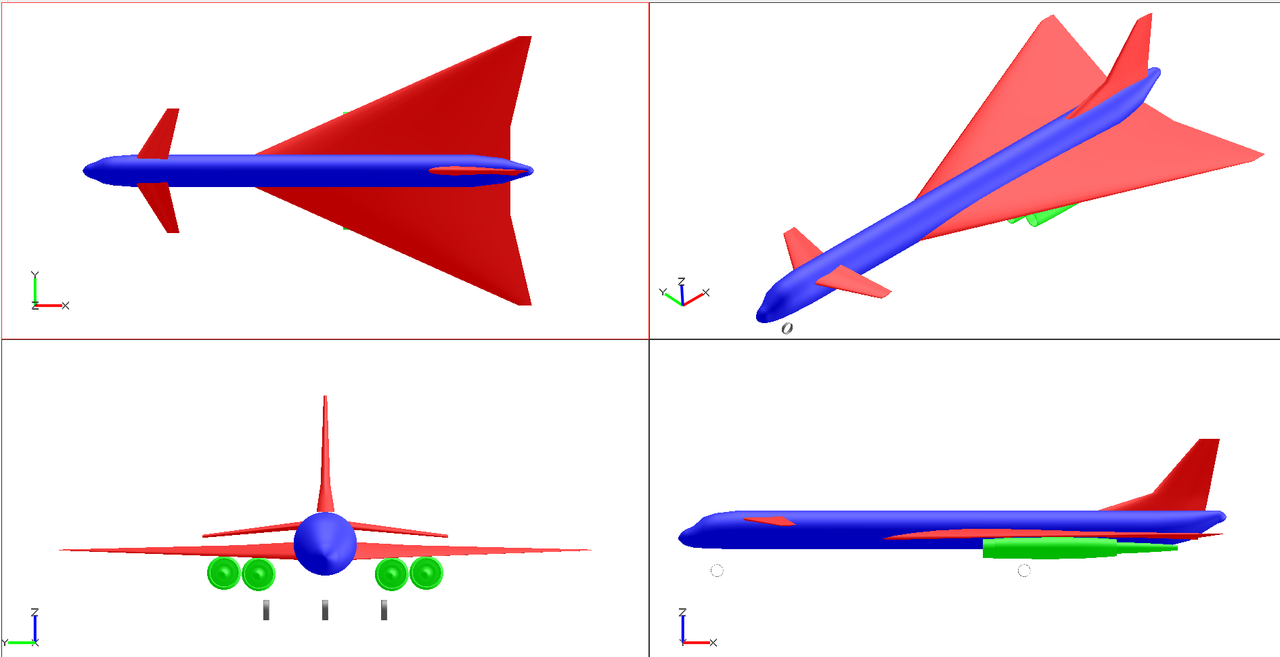

Bildschirmfoto-2020-07-19-um-14-00-14

An unconventional aircraft which allows 200 passenger on board with 3 jet engines. Disigned in OpenVSP Connect. The MACH number is approximately around 1.1. The 3 engines generate 240 KN of thrust.


Wed Jul 29 16:59:40 2020
-------------------------------------------------

Family Name = Voges
Given Name = Julia
My Aircraft =

Homework 3/ Week 5 and 6





Bildschirmfoto-2020-07-20-um-23-12-45

An aircraft based on the Bombardier DHC-8-400. 78 passangers, Mach number 0.62, Wingspan 28,4 m, Lenght 32,81m, Height, 8,3m. The DASH-8-Q400 range is 2.040 km, max cruising speed is 667km/h. The max operating altitude is 8.230m above mean sea level. 2 Turboprop engines (Thrust 3781 kW)


Wed Jul 29 17:02:57 2020
-------------------------------------------------
